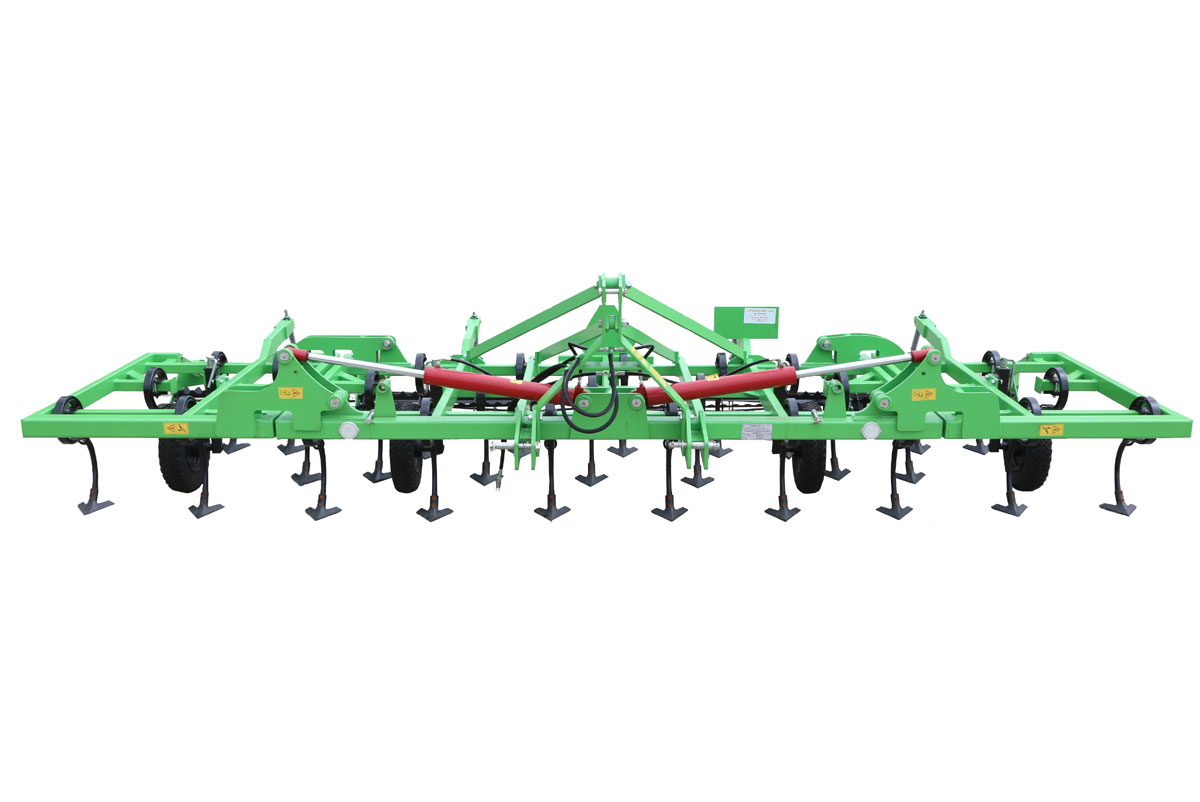

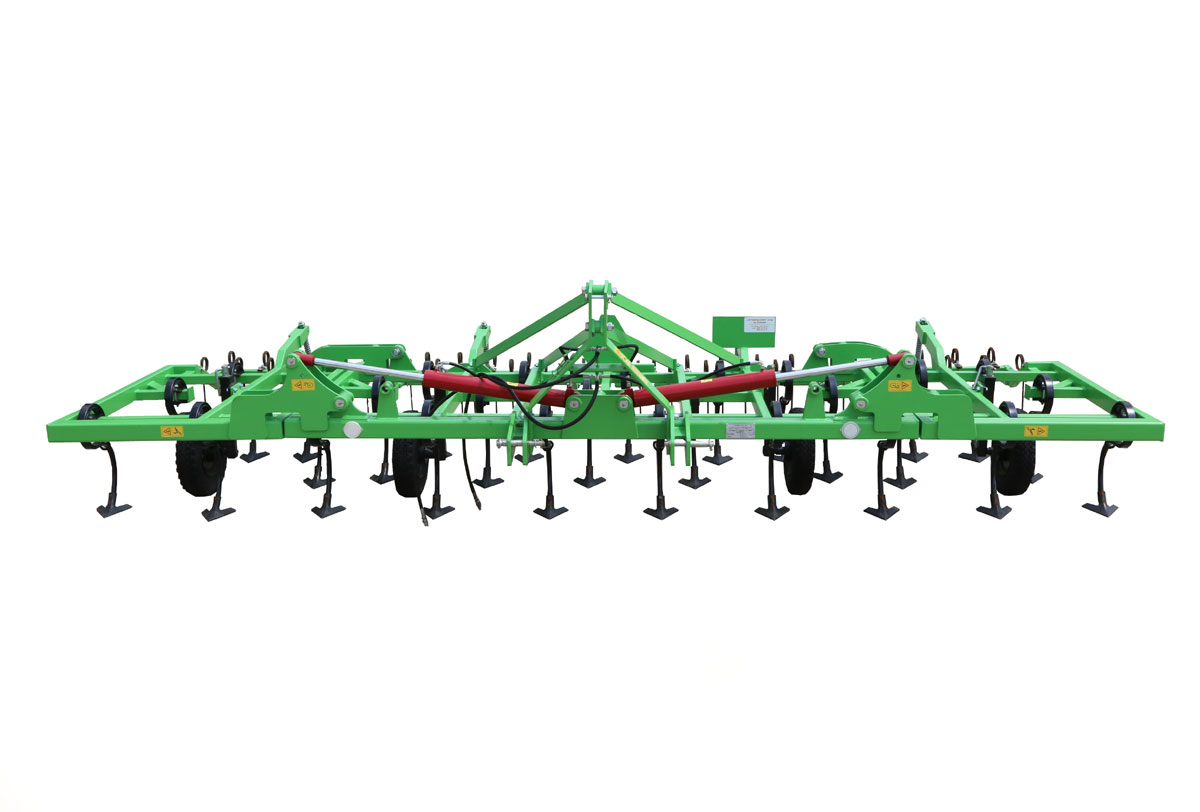

Mounted type cultivators for fused surface processing
Models MCSP – 4.6 and 5.4
Mounted type cultivators for fused surface processing are used in agriculture for field cultivation at depths up to 12 сm, mainly for soil cultivation prior to sowing of terrain slopes up to 10° Thus considerable leveling of the soil surface and weeds destruction is achieved. They can also be used for interim weed control treatment for maintenance of land terrains.
Mounted type cultivators are of high functional reliability and even in case of large amount of plant residues, they retain their high performance.
The modifications of these cultivators differ only in their working width, mass and number of working bodies.
Cultivators are complete with support wheels for adjusting the working depth.
Upon customer's request they can be equipped with soil-loosening rollers or two rows of torsion springs.

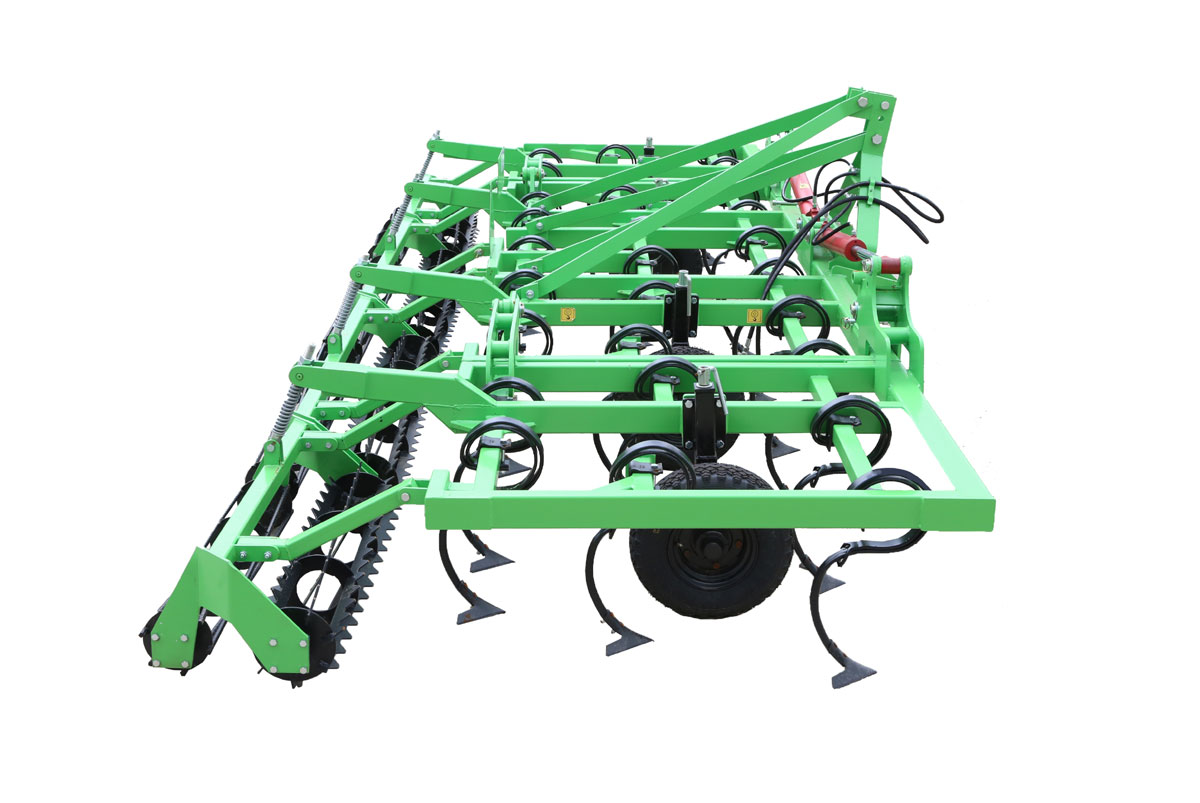

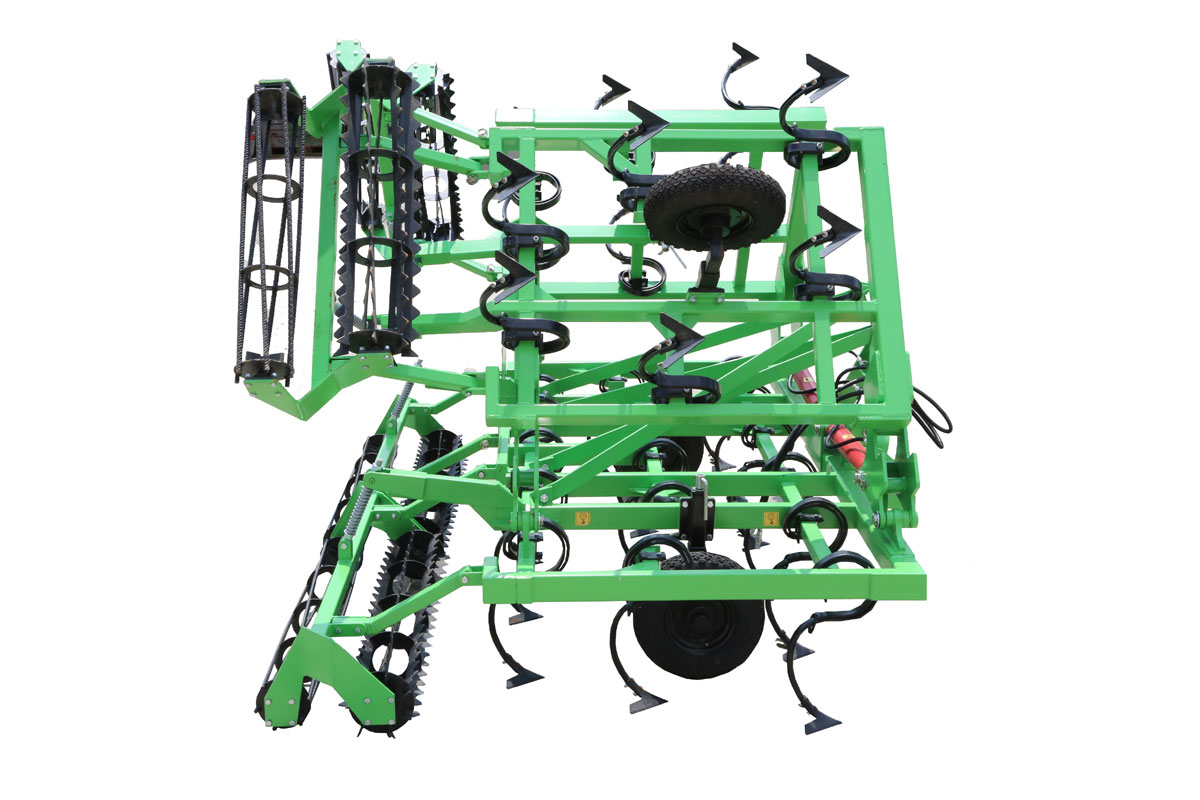

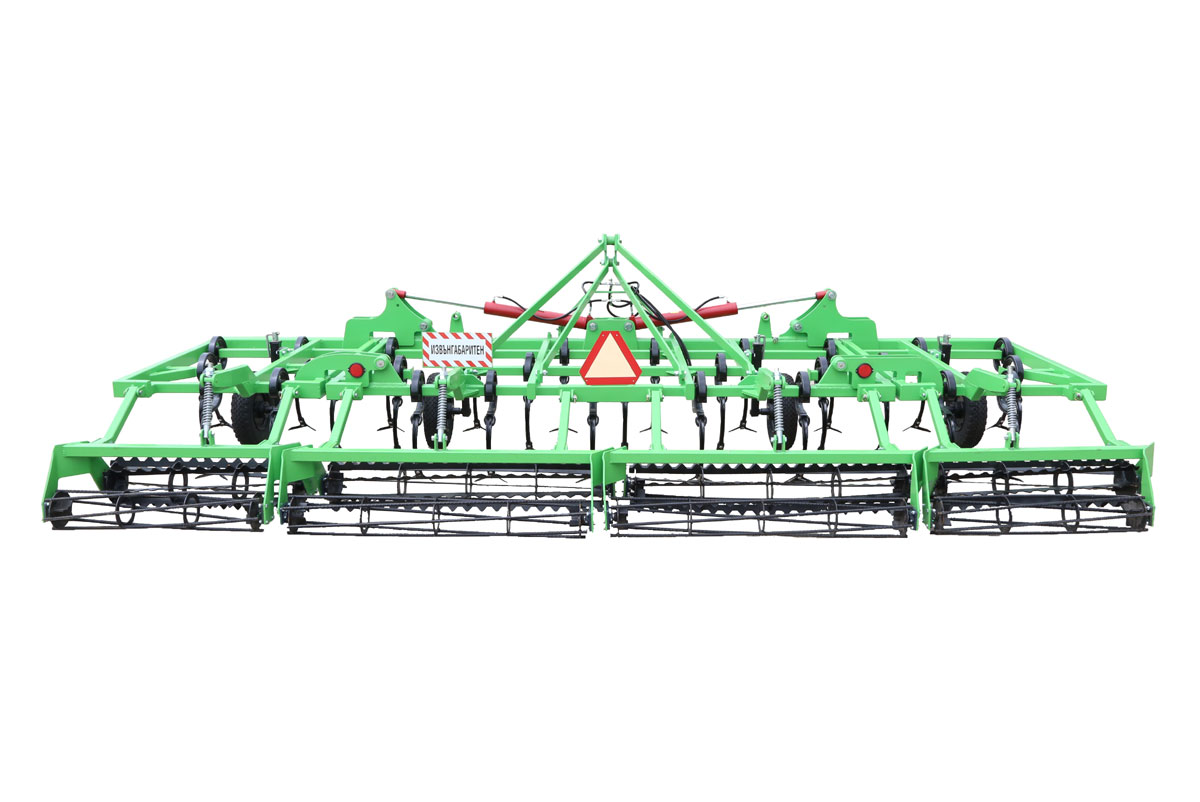

| with soil-loosening rollers | |
|
|
|
|

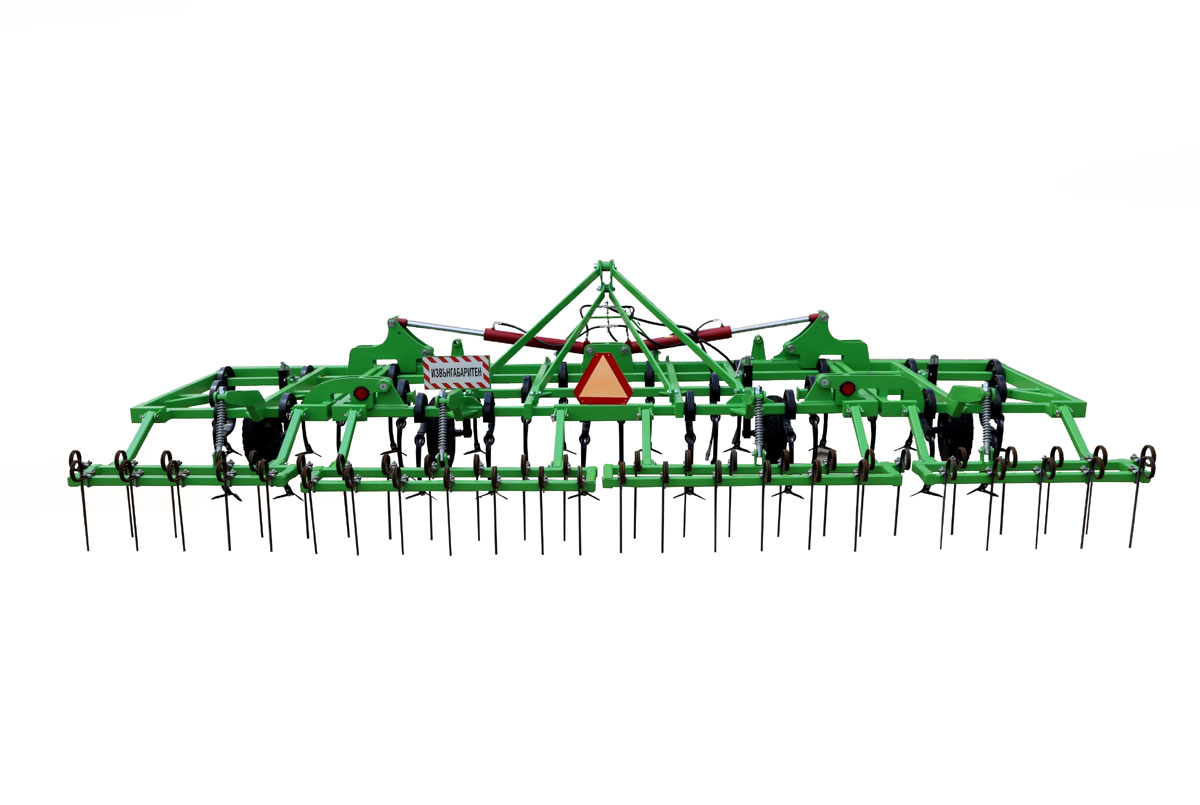

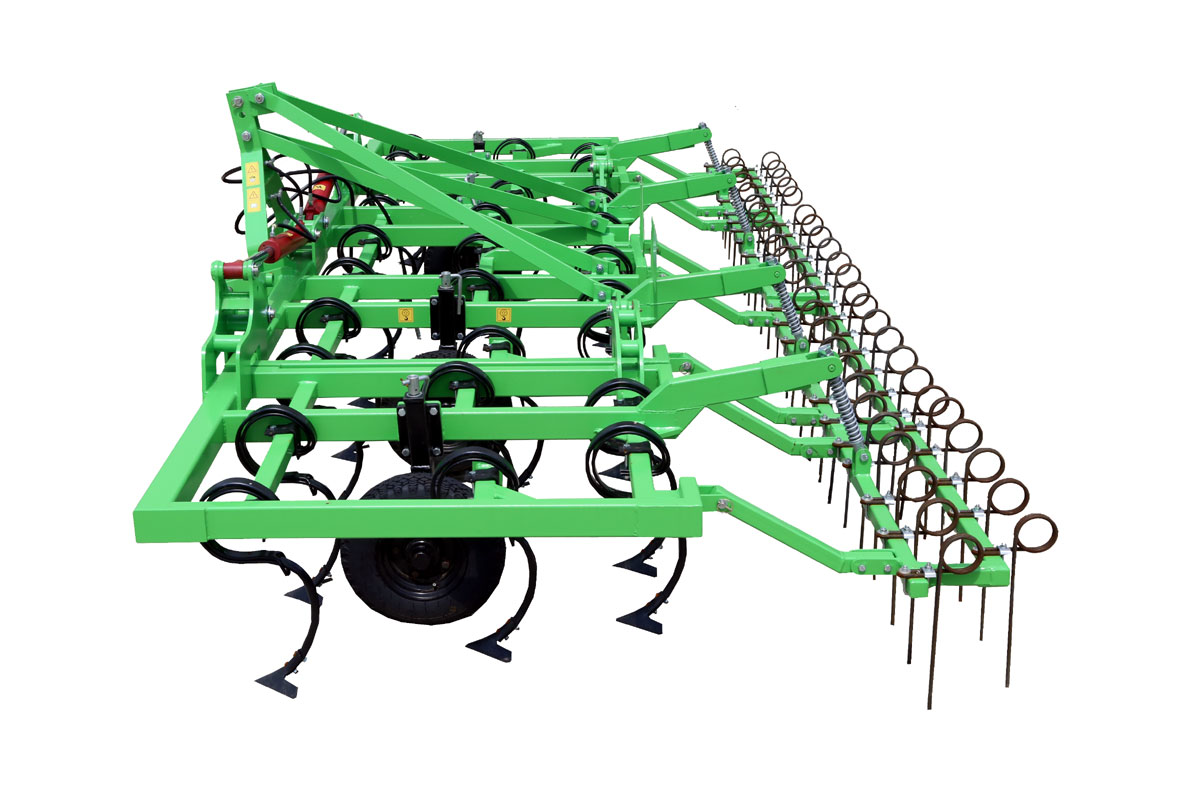

| with torsion springs | |
|
|
|
|
Main parameters of cultivator are given in the table:
| Parameters | Units | Value | ||
| MCSP-4.6 | MCSP-5.4 | |||
| Type | mounted | |||
| Working width | m | 4,6 | 5,4 | |
| Working depth | сm | from 8 to 12 | ||
| Operating speed | кm/h | up to 10 | ||
| Transport speed | кm/h | up to 25 | ||
| Overall dimensions during work: | ||||
| - length | mm | up to 2 500 | 2 500 | |
| - height | mm | up to 1 400 | 1 340 | |
| - width | mm | up to 4 600 | 5 550 | |

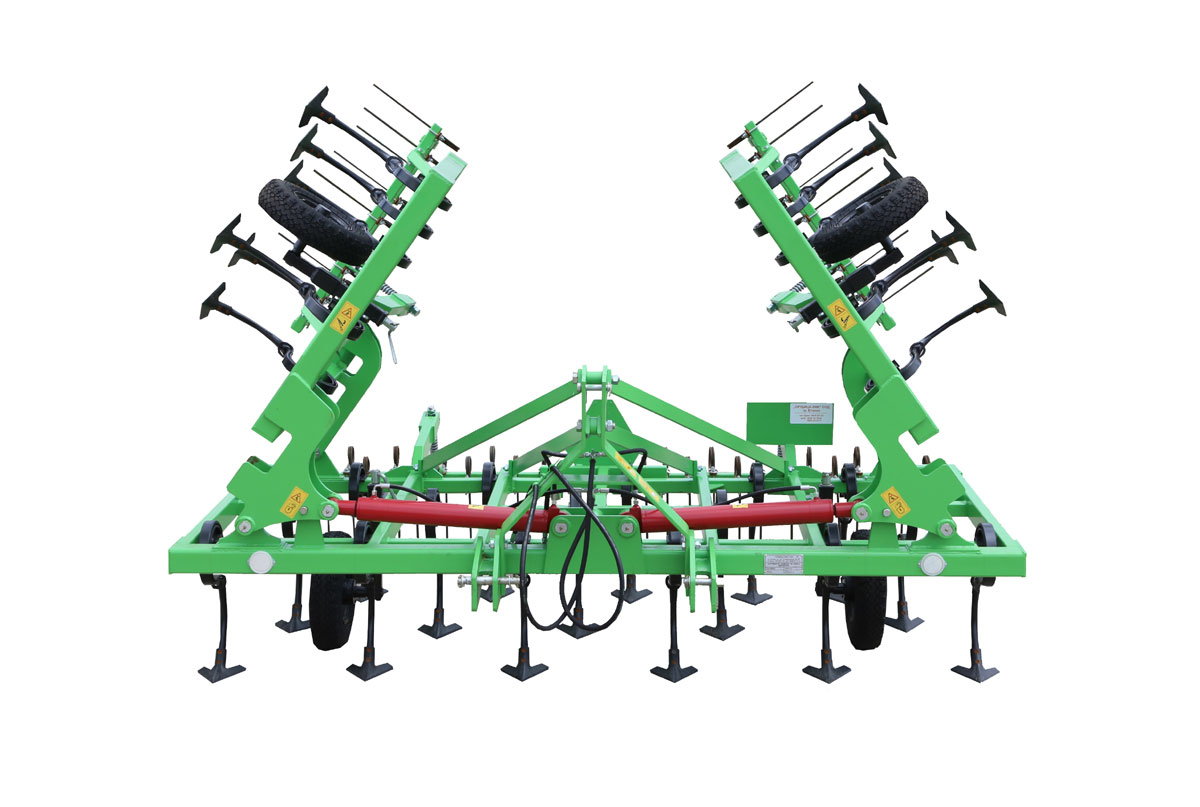

| during transport: | ||||
| - length | mm | up to 2 500 | 2 500 | |
| - height | mm | up to 2 150 | 2 300 | |
| - width | mm | up to 3 000 | 3 000 | |
| Ground clearance under the frame | mm | up to 560 | ||
| Маса | kg | 1280 | 1320 | |
| Number of working bodies | бр | 21 | 25 | |
| Static stability | deg | over 35° | ||
| Aggregating tractor with mass and power over | kg/kW | 4000 /100 | ||
