Mounted type cultivators 6.0 and 7.2

Mounted type cultivators for fused surface processing

Model MCSP – 6.0 and 7.2

Mounted type cultivators for fused surface processing are used in agriculture for field cultivation to depths of up to 12 сm, mainly for soil cultivation prior to sowing of terrain slopes up to 10° Thus considerable leveling of the soil surface and weeds destruction is achieved. They can also be used for interim weed control treatment for maintaining land terrains.

Mounted type cultivators are of high functional reliability and even in case of large amount of plant residues, they retain their high performance.

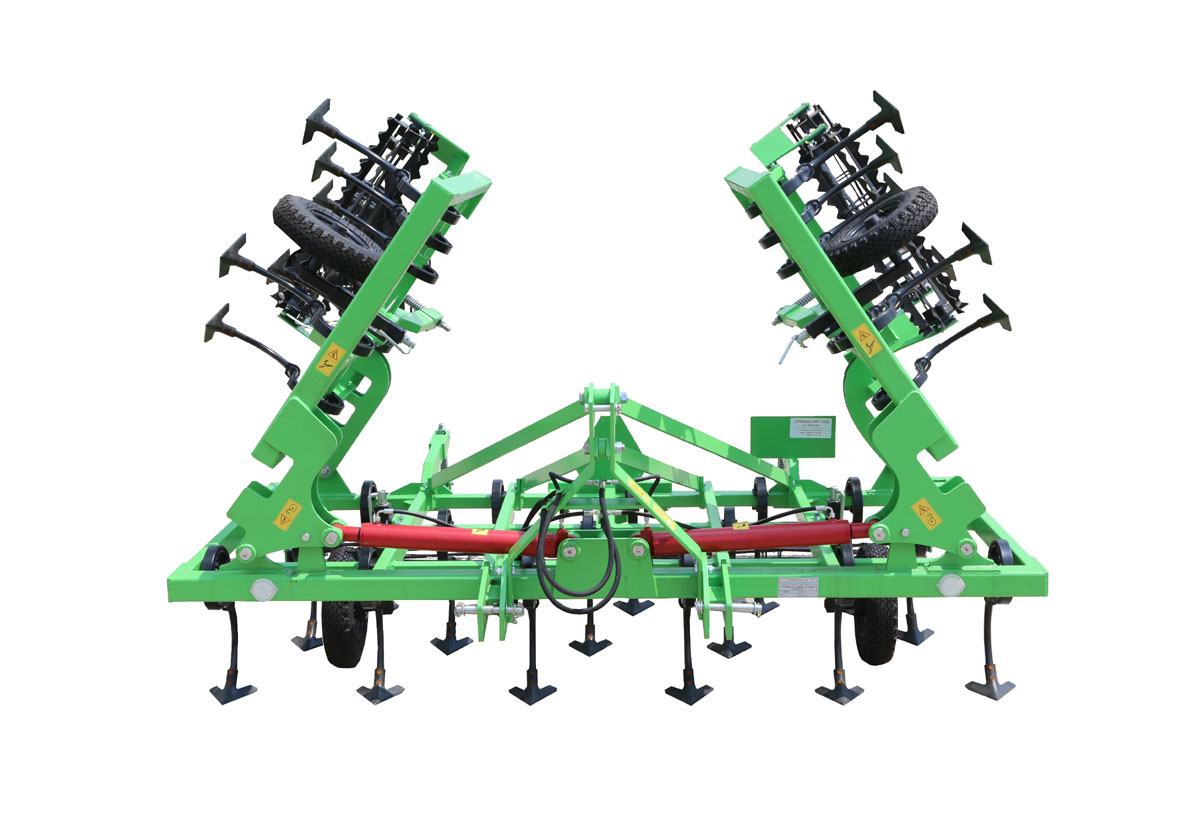

Mounted type cultivators  6.0 and 7.2

The modifications of these cultivators differ only in their working width, mass and number of working bodies.

Cultivators are complete with support wheels for adjusting the working depth.

Upon customer's request they can be equipped with soil-loosening rollers or two rows of torsion springs.

With soil-loosening rollers
Mounted type cultivators  6.0 and 7.2 Mounted type cultivators  6.0 and 7.2
Mounted type cultivators  6.0 and 7.2 Mounted type cultivators  6.0 and 7.2

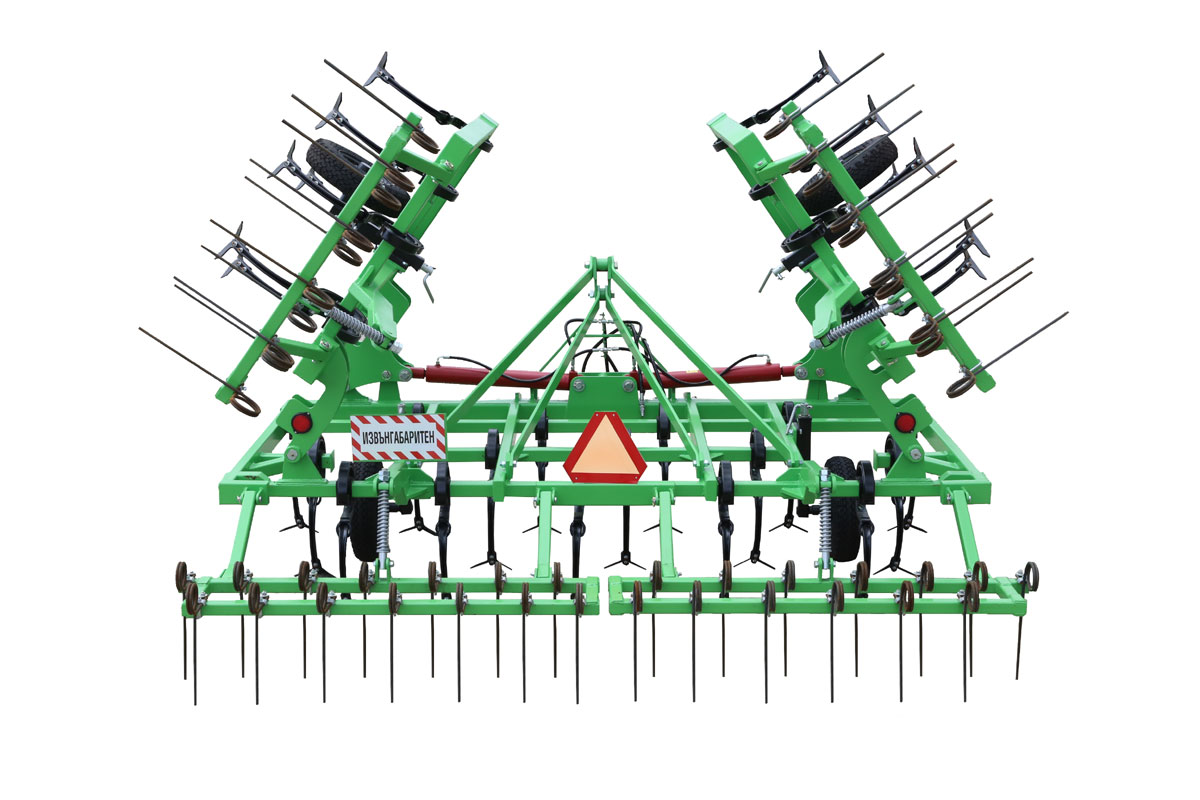

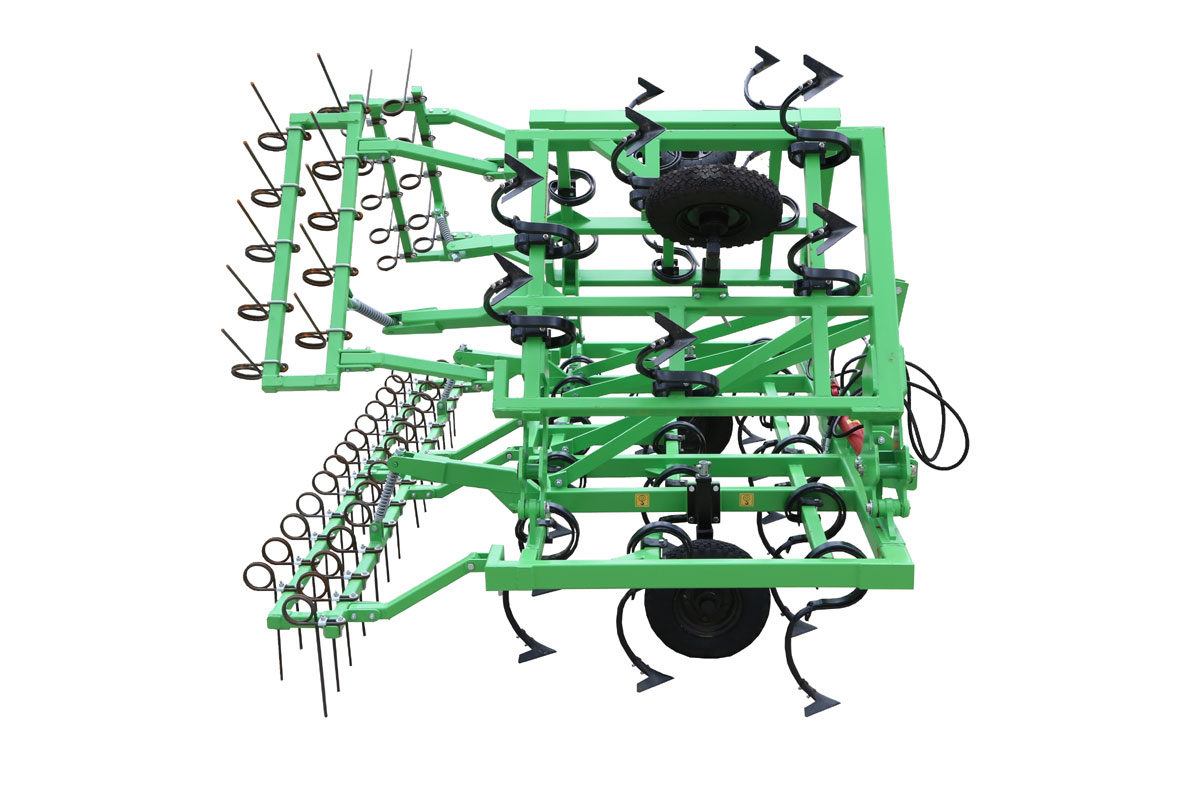

With torsion springs
Mounted type cultivators  6.0 and 7.2 Mounted type cultivators  6.0 and 7.2
Mounted type cultivators  6.0 and 7.2 Mounted type cultivators  6.0 and 7.2

The main parameters of cultivator are given in the table:

Parameters

Units

Value

MCSP-6.0

MCSP-7.2

Type



mounted

Working width

m

6.0

7.2

Working depth

сm

from 8 to 12

Operating speed

кm/h

up to 10

Transport speed

кm/h

up to 25

Overall dimensions:

- during work

length
height
width

- during transport

length
height
width





mm
mm
mm



mm
mm
mm







up to 2 600
up to 1 400
up to 6 000



up to 2 600
up to 2 450
up to 3 500







up to 2 600
up to 1 400
up to 7 200



up to 2 600
up to 2 850
up to 3 500

Ground clearance under the frame



up to 560

Mass

kg

1540

1660

Number of working bodies

Piece

28

34

Static stability

Deg

over 35°

Aggregating tractor with mass and power over

kg/kW

4500 /120
