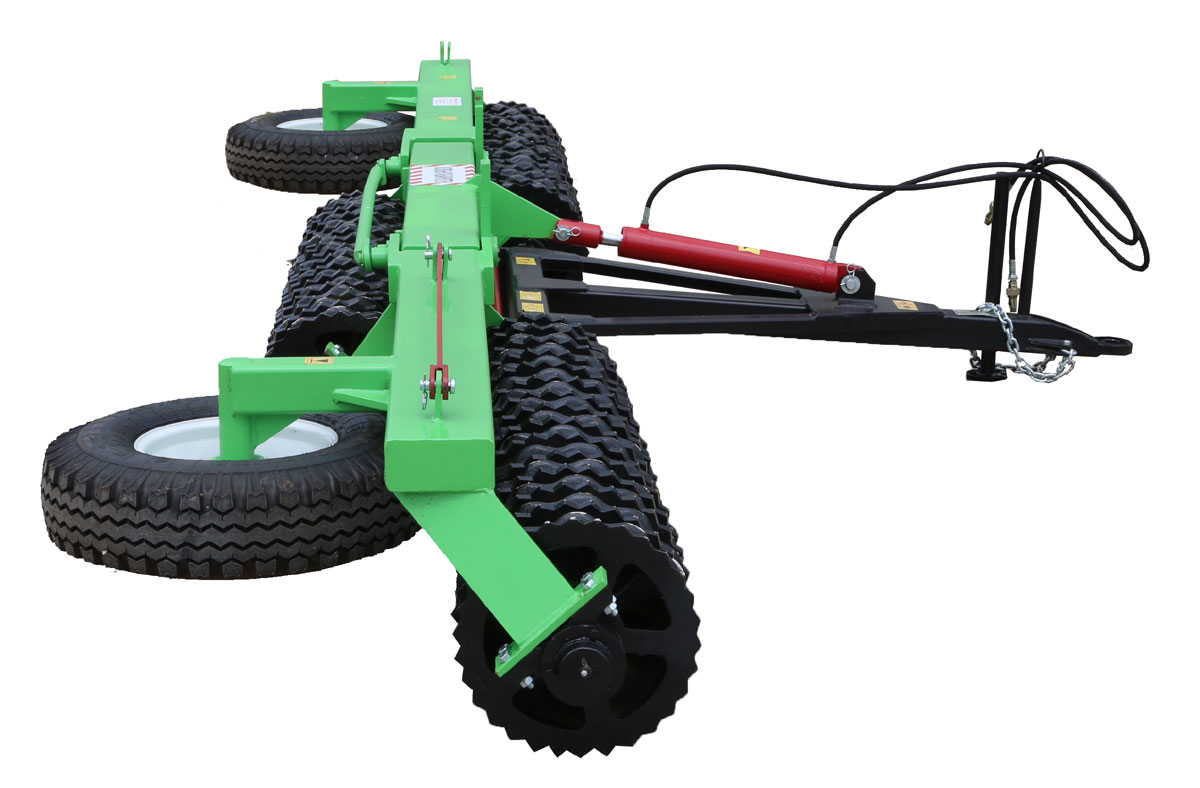

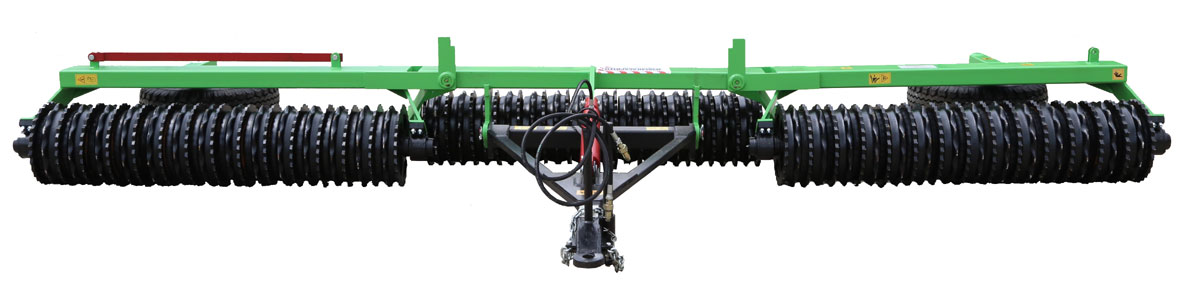

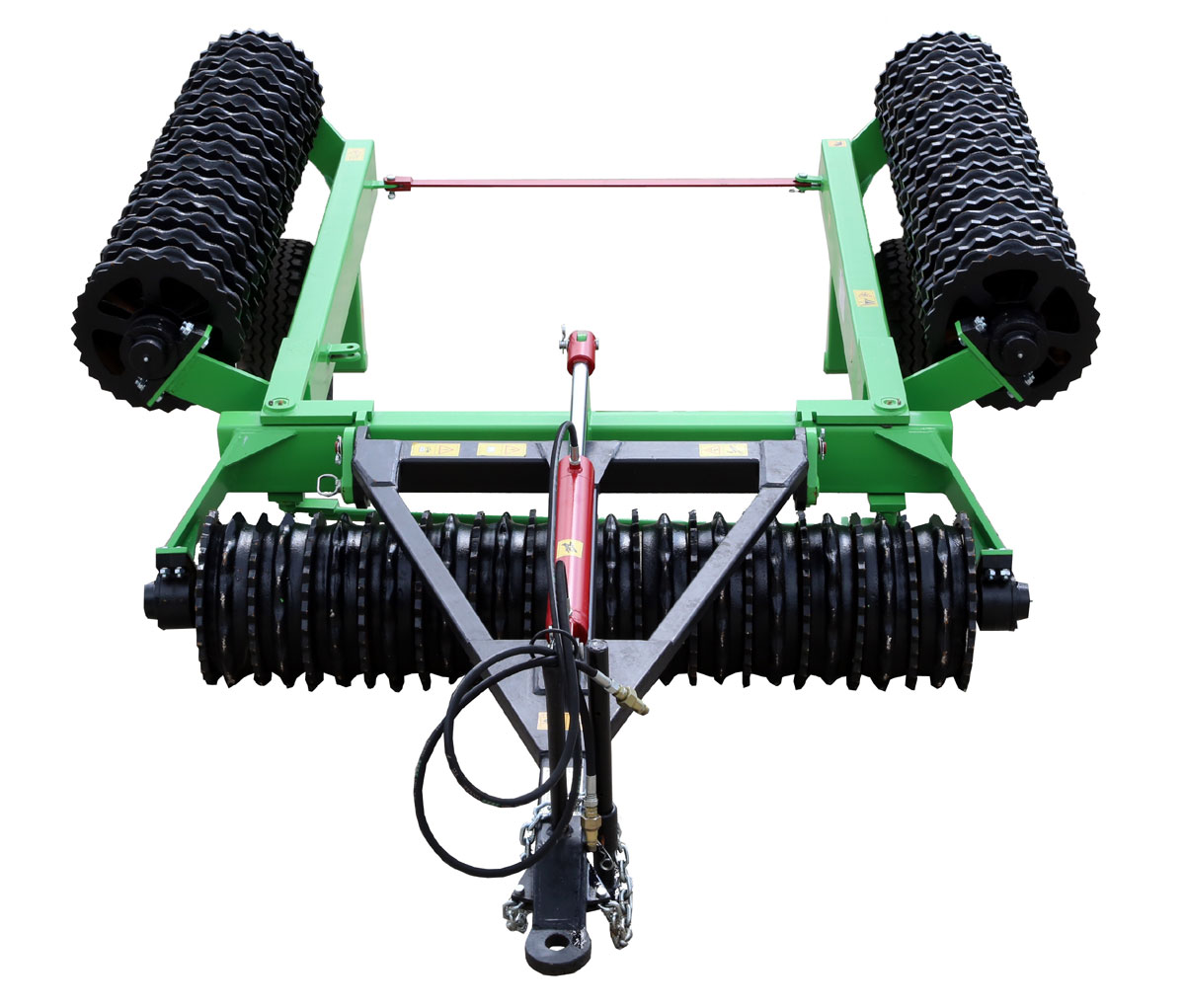

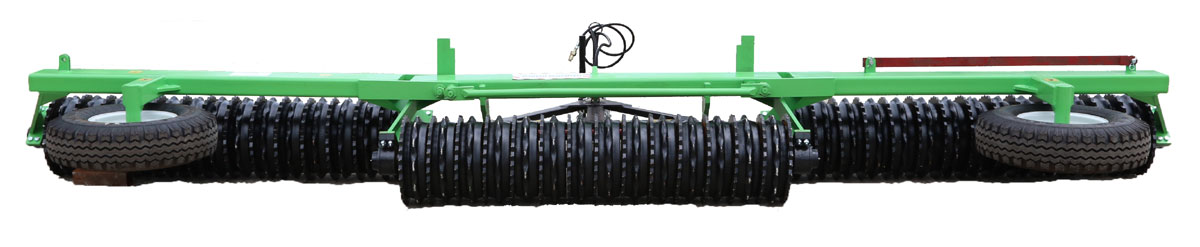

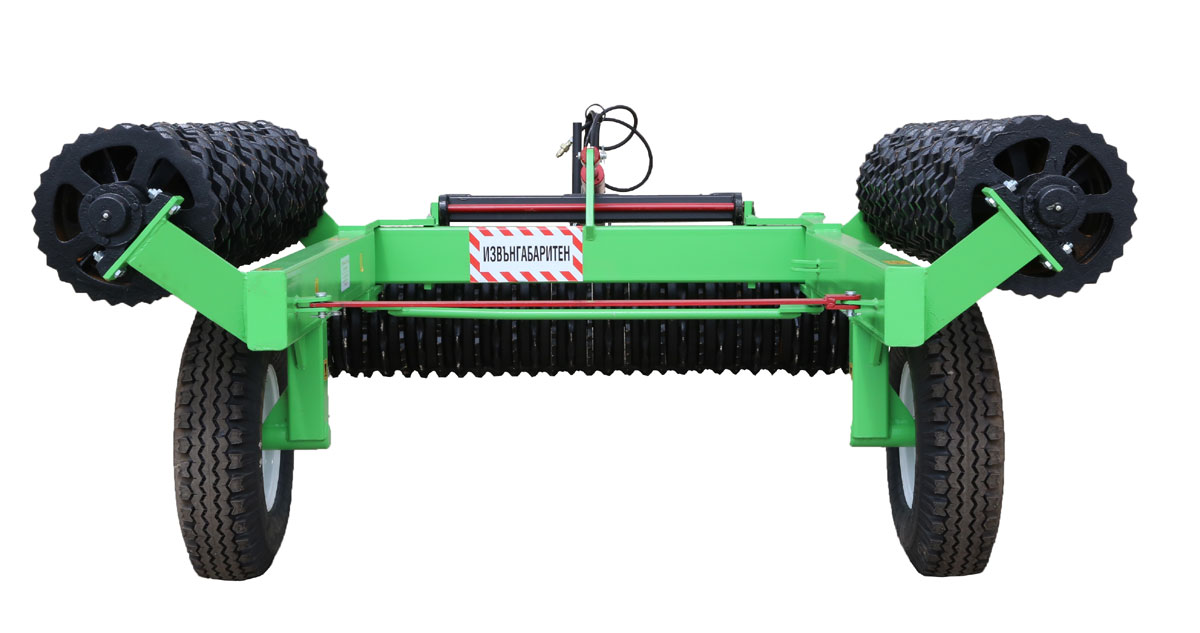

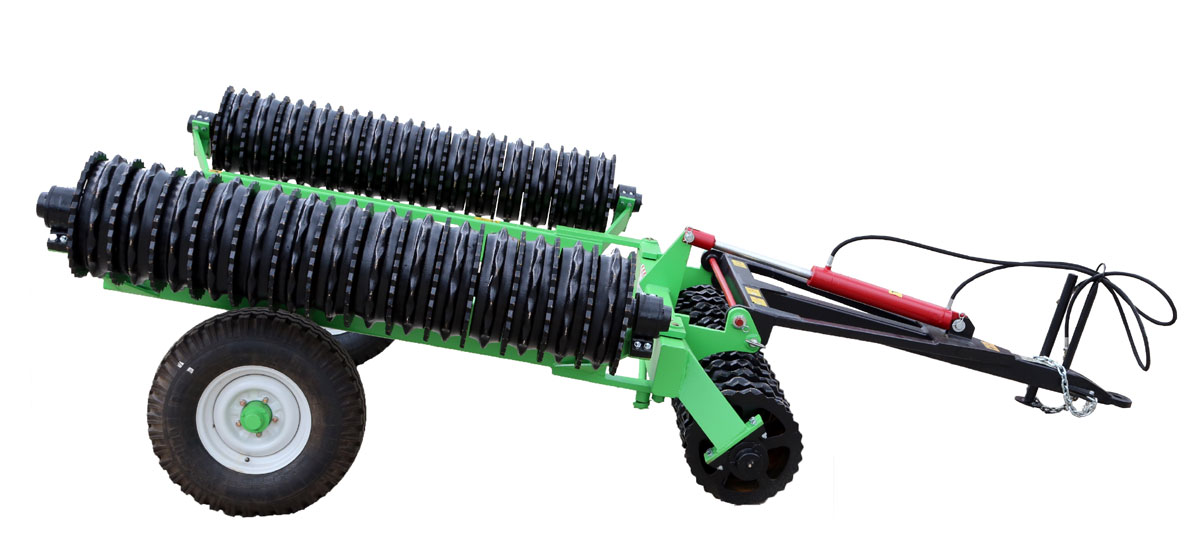

Trailed Hydraulic rollers
Model 4.5 and 6.0
Tractor trailed rollers are used in agriculture before and after each sowing process mainly for shredding large soil debris from the pre-sowing treatment of the soil.
This also helps to achieve significant leveling and evening of the soil surface and thickening of the soil layer after sowing.
| Graiffer hydraulic rollers: | |
| Graiffer - 4.5 | GHTTR/4.5 |
| Graiffer - 6.0 | GHTTR/6.0 |
| Disk hydraulic rollers: | |
| Disk - 4.5 | DHTTR/4.5 |
| Disk - 6.0 | DHTTR/6.0 |
SPECIFICATIONS
| GHTTR/D 4.5 | GHTTR/D 6.0 | ||
| Operating width | m | 4,5 | 6,0 |
| Thickening depth | mm | 30 to 40 | 30 to 40 |
| Operating speed | km/h | up to 10 | up to 10 |
| Overall dimensions- working position | |||
| Length | mm | 2900 | 3100 |
| Width | mm | 4500 | 6000 |
| Height | mm | 700 | 700 |
| Overall dimensions- transport position | |||
| Length | mm | 3800 | 4600 |
| Width | mm | 2000 | 2800 |
| Height | mm | 1300 | 1300 |
| Mass | kg | 2000 | 2300 |
