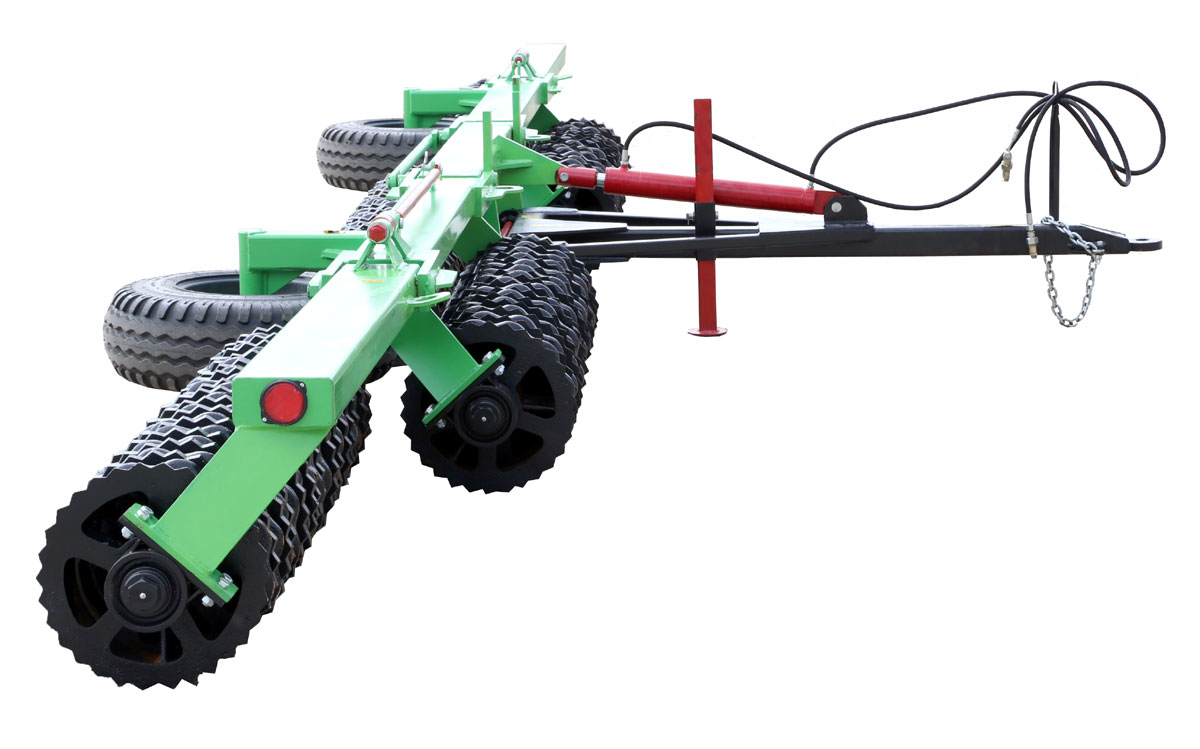

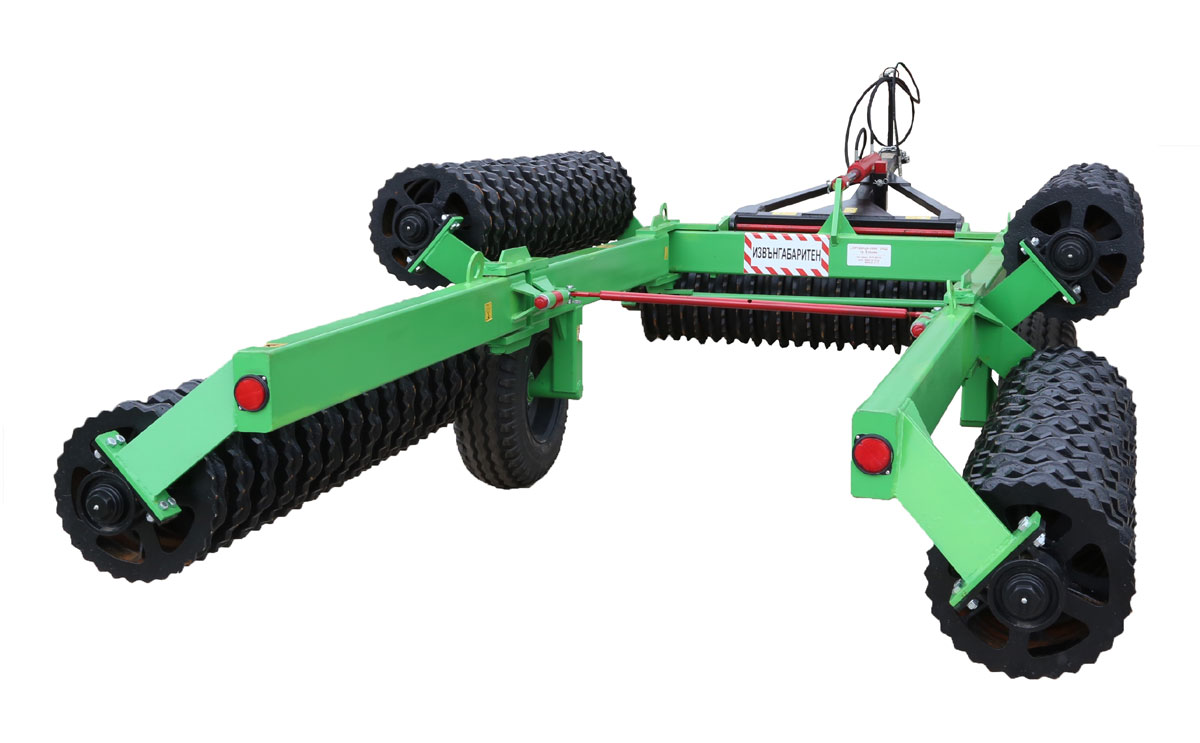

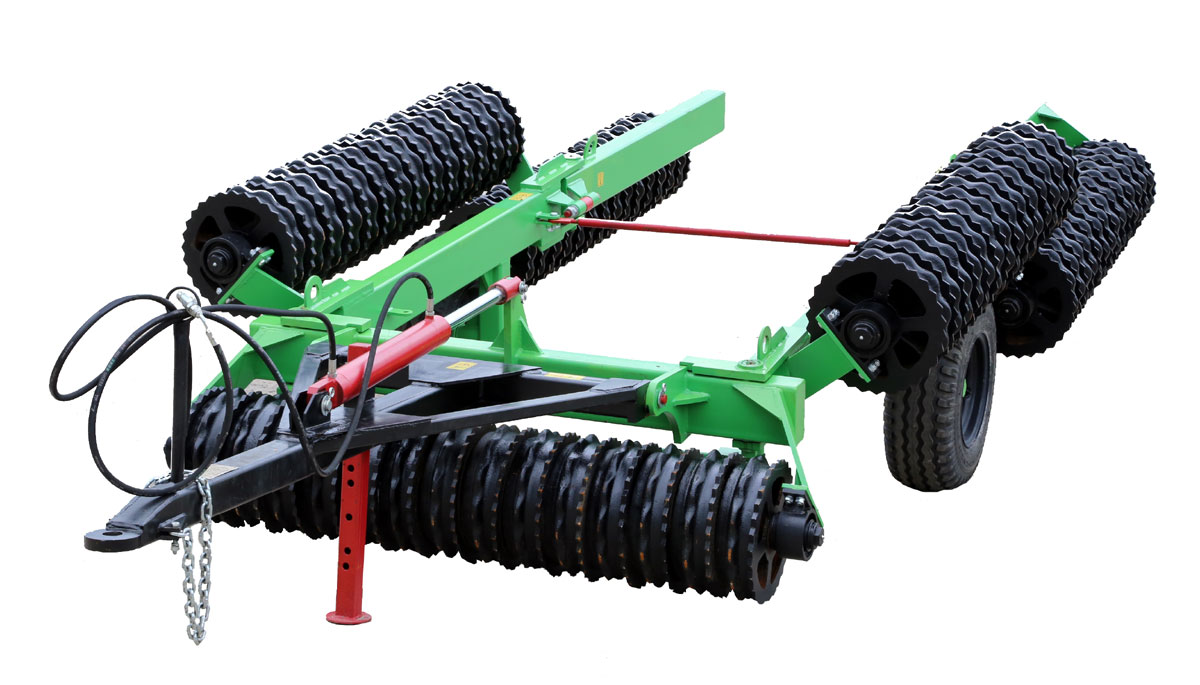

Trailed hydraulic rollers
Model 9.0 and 10.0
Tractor trailed rollers are used in agriculture before and after each sowing process mainly for shredding large soil debris from the pre-sowing treatment of the soil.
This also helps to achieve significant leveling and evening of the soil surface and thickening of the soil layer after sowing.
| Graiffer hydraulic rollers: | |
| Graiffer - 9.0 | GHTTR/9.0 |
| Graiffer - 10.0 | GHTTR/10.0 |
| Disk hydraulic rollers: | |
| Disk - 9.0 | DHTTR/9.0 |
| Disk - 10.0 | DHTTR/10.0 |
SPECIFICATIONS
|
GHTTR/D 9.0 |
GHTTR/D 10.0 |
||
|
Operating width |
m |
9.0 |
10.0 |
|
Thickenning depth |
mm |
30 to 40 |
30 to 40 |
|
Operating speed |
km/h |
up to 10 |
up to 10 |
|

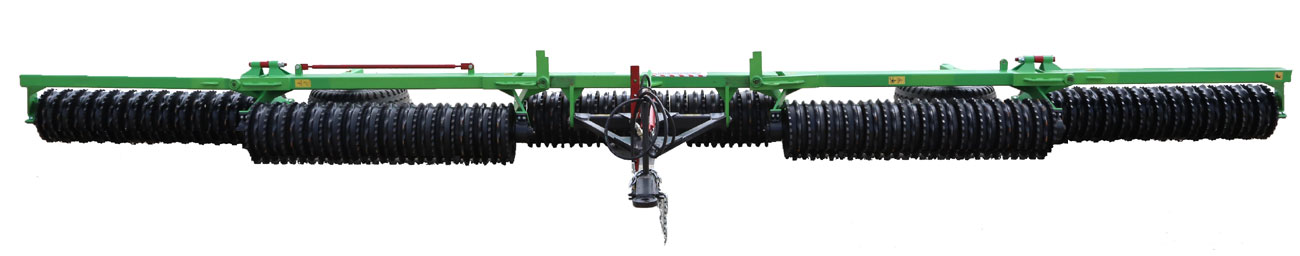

Overall dimensions - working position |
|||
|
Length |
mm |
3200 |
3200 |
|
Width |
mm |
9000 |
10000 |
|
Height |
mm |
1000 |
1000 |
|

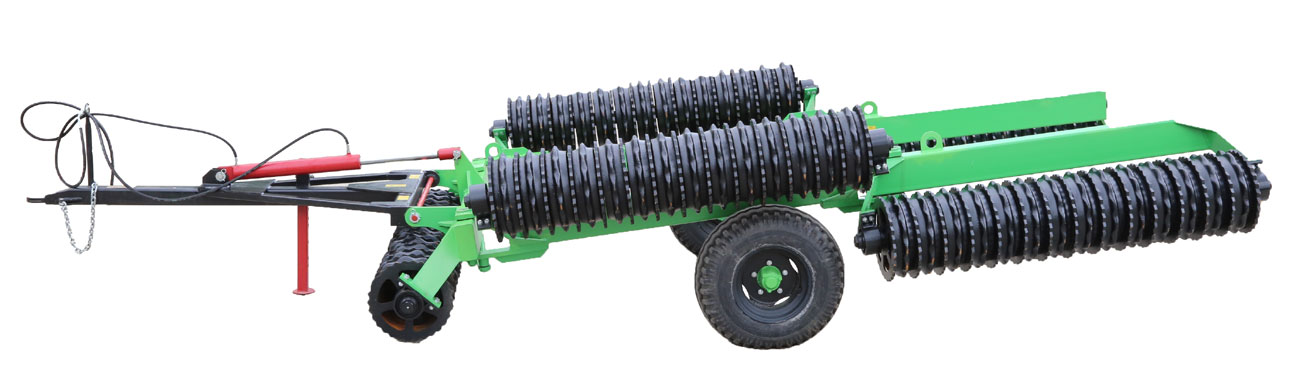

Overall dimensions - transport position |
|||
|
Length |
mm |
6450 |
6850 |
|
Width |
mm |
2700 |
2700 |
|
Height |
mm |
1300 |
1350 |
|
Mass |
kg |
3350 |
3600 |
